Voice Print Intelligent Acoustic Monitoring System (100)

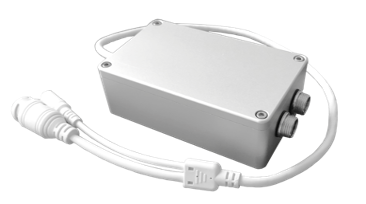

HZ-FA-100 Intelligent Acoustic Monitoring System

AI-Driven Acoustic Monitoring with Dual Sensor Flexibility

The HZ-FA-100 series (including models 100C and 100R) is a compact, intelligent signal acquisition system designed for advanced acoustic diagnostics using deep learning and edge computing. Supporting both contact and non-contact sensors, it enables precise acoustic detection across various industrial environments.

Equipped with dual-channel synchronized acquisition, the system samples at up to 120kHz and communicates via RJ45 Ethernet using HTTP and WebSocket protocols. Integrated with Hertzinno’s Intelligent Platform or third-party software, it enables real-time detection of equipment anomalies through rich voiceprint feature analysis.

🔍 Key Features

• Dual-channel synchronized acquisition up to 120kHz

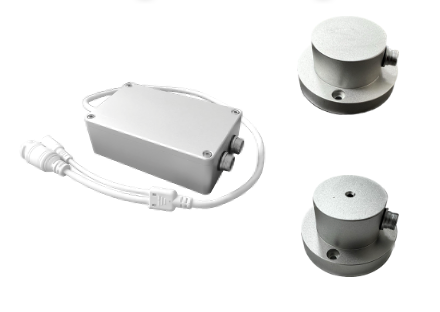

• Supports contact & non-contact sensors

• AI voiceprint-based alarm analysis

• HTTP/WebSocket protocol support

• IP67-rated, -40°C to 70°C operation

• Compact form factor (110×64×38mm, 250g)

• 24-bit ADC with advanced spectral analytics

• Overvoltage, overcurrent, anti-reverse protection

• Audio recording, playback, and event file storage

🎯 Application Scenarios

• Transformer partial discharge monitoring

• Motor or rotating machinery diagnostics

• PV box and GIS sound anomaly detection

• General power equipment condition monitoring

Manufacturers Datasheet: Download
