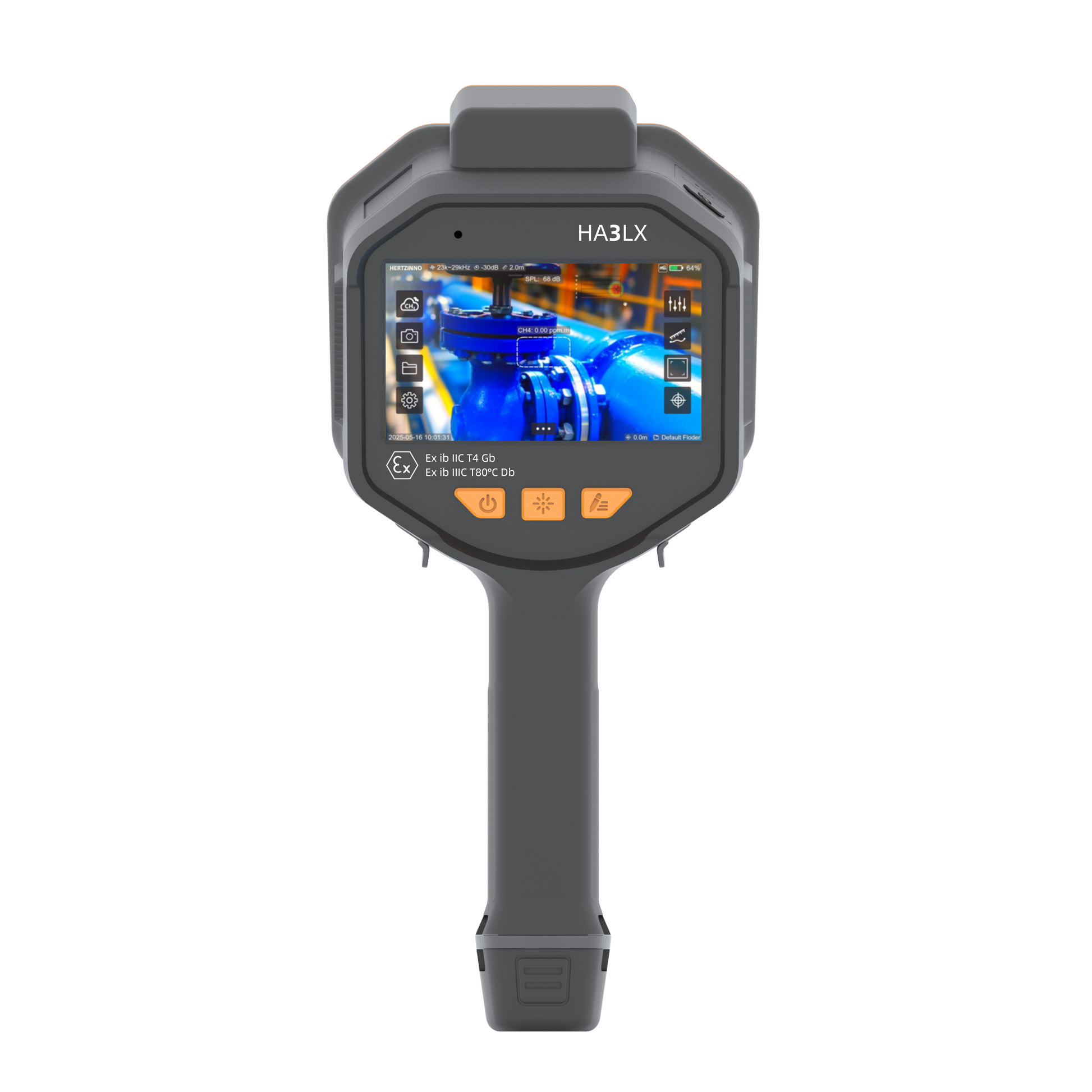

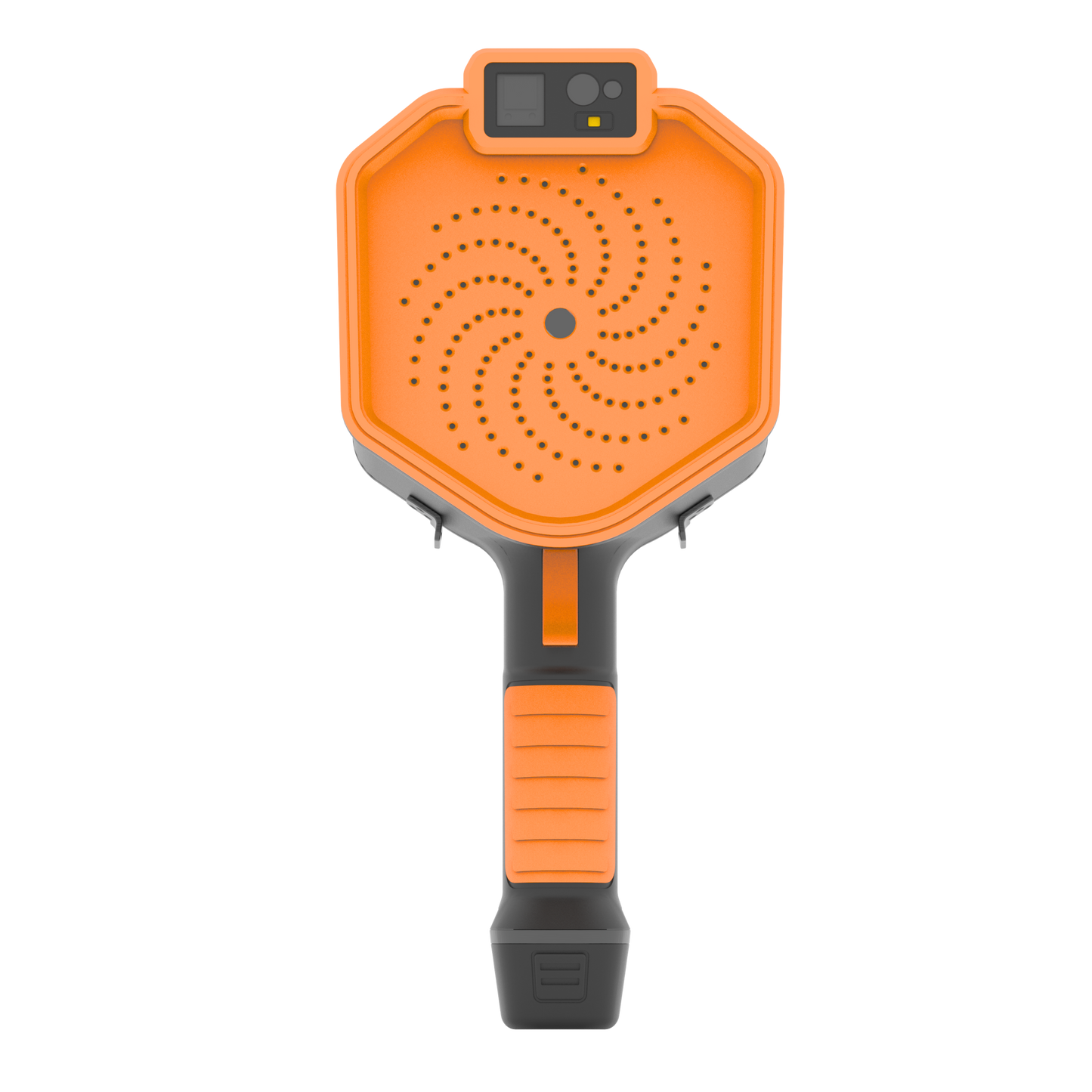

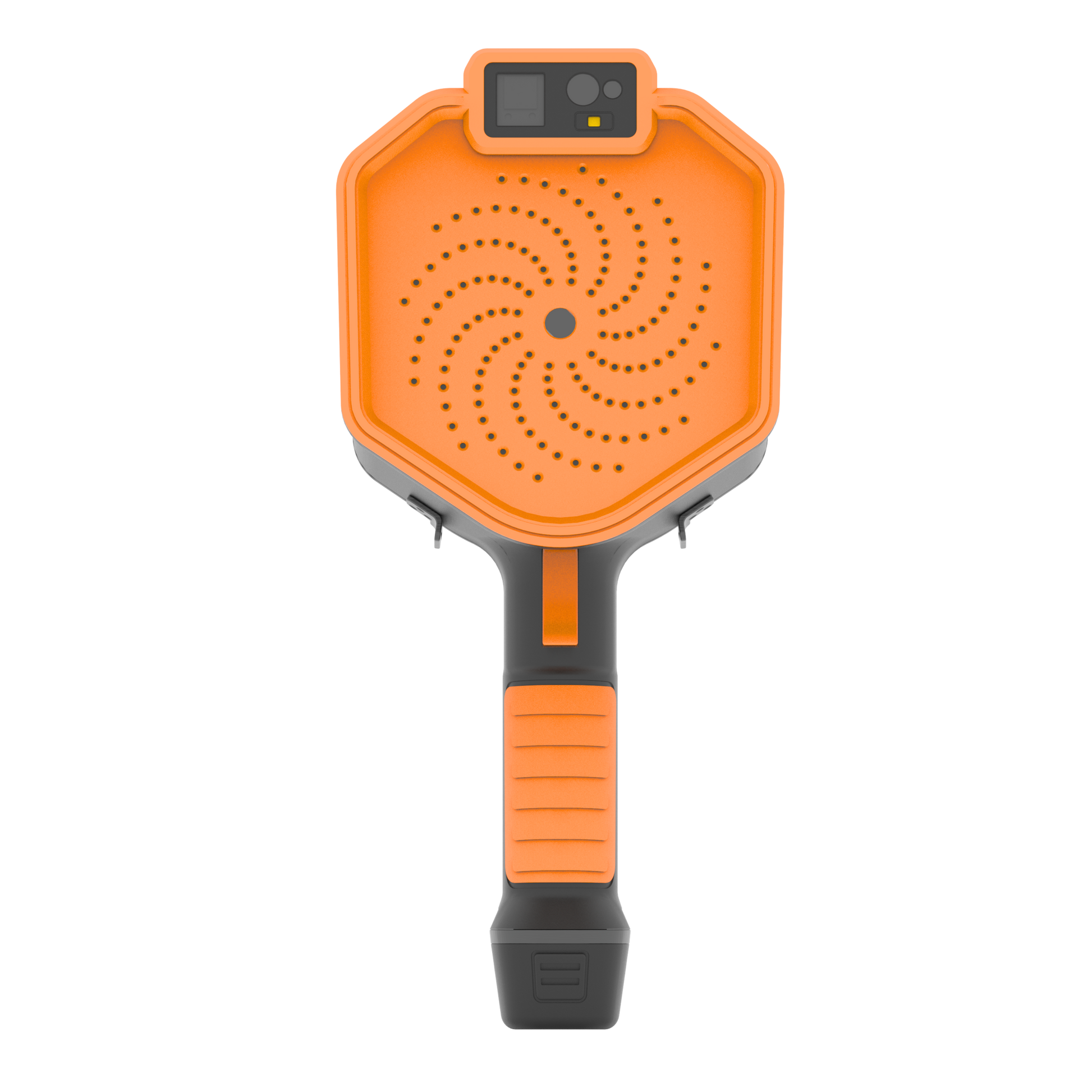

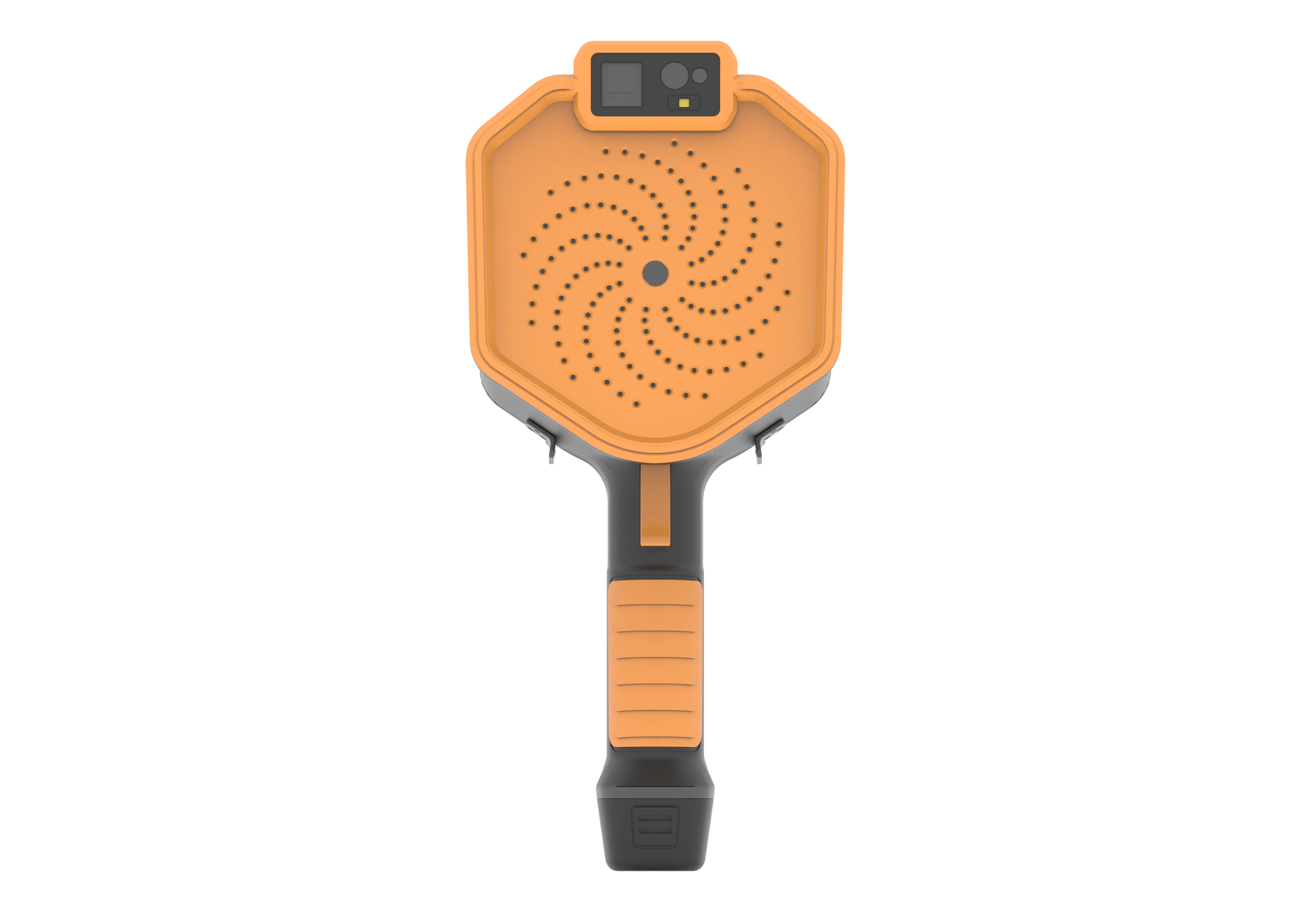

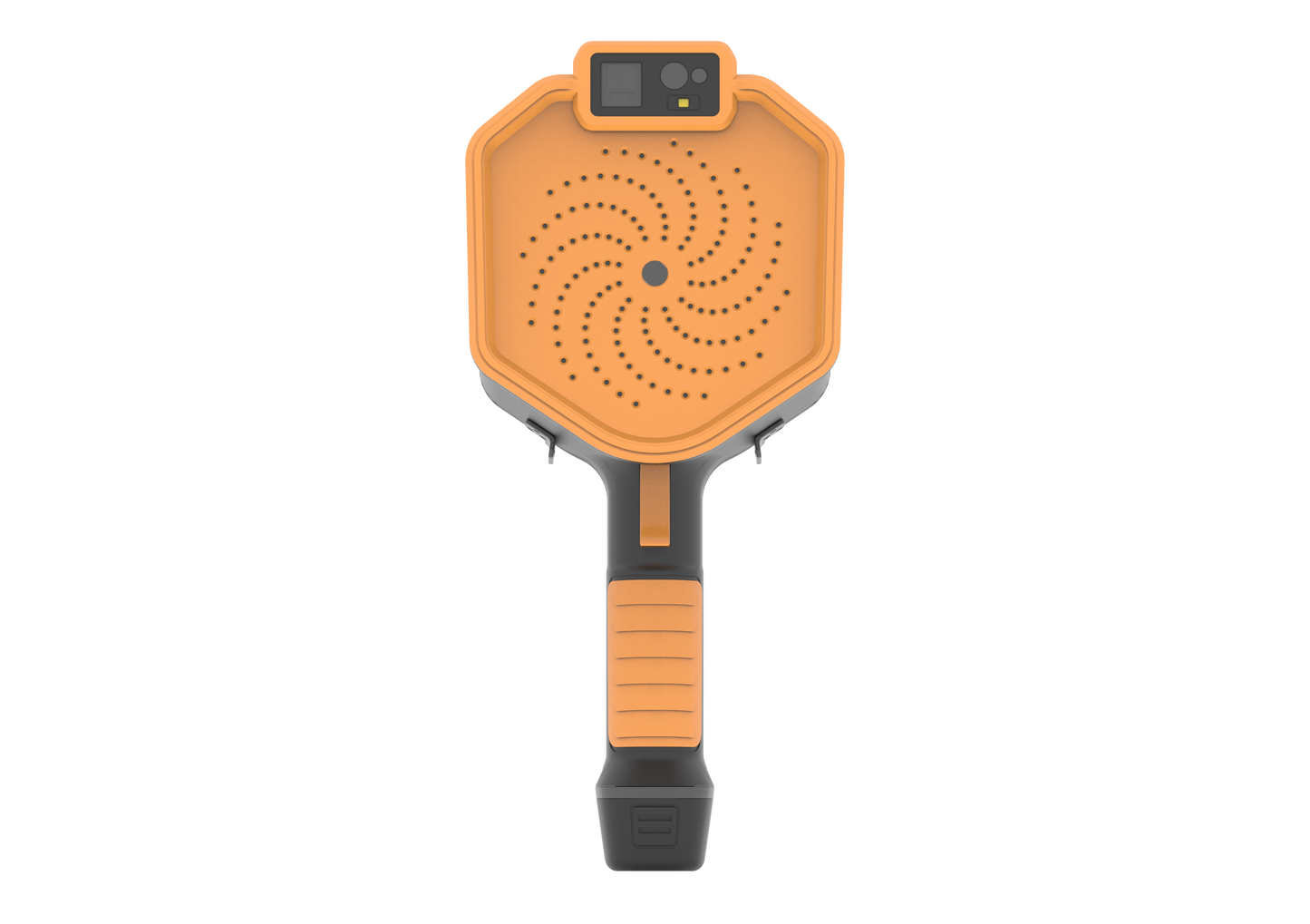

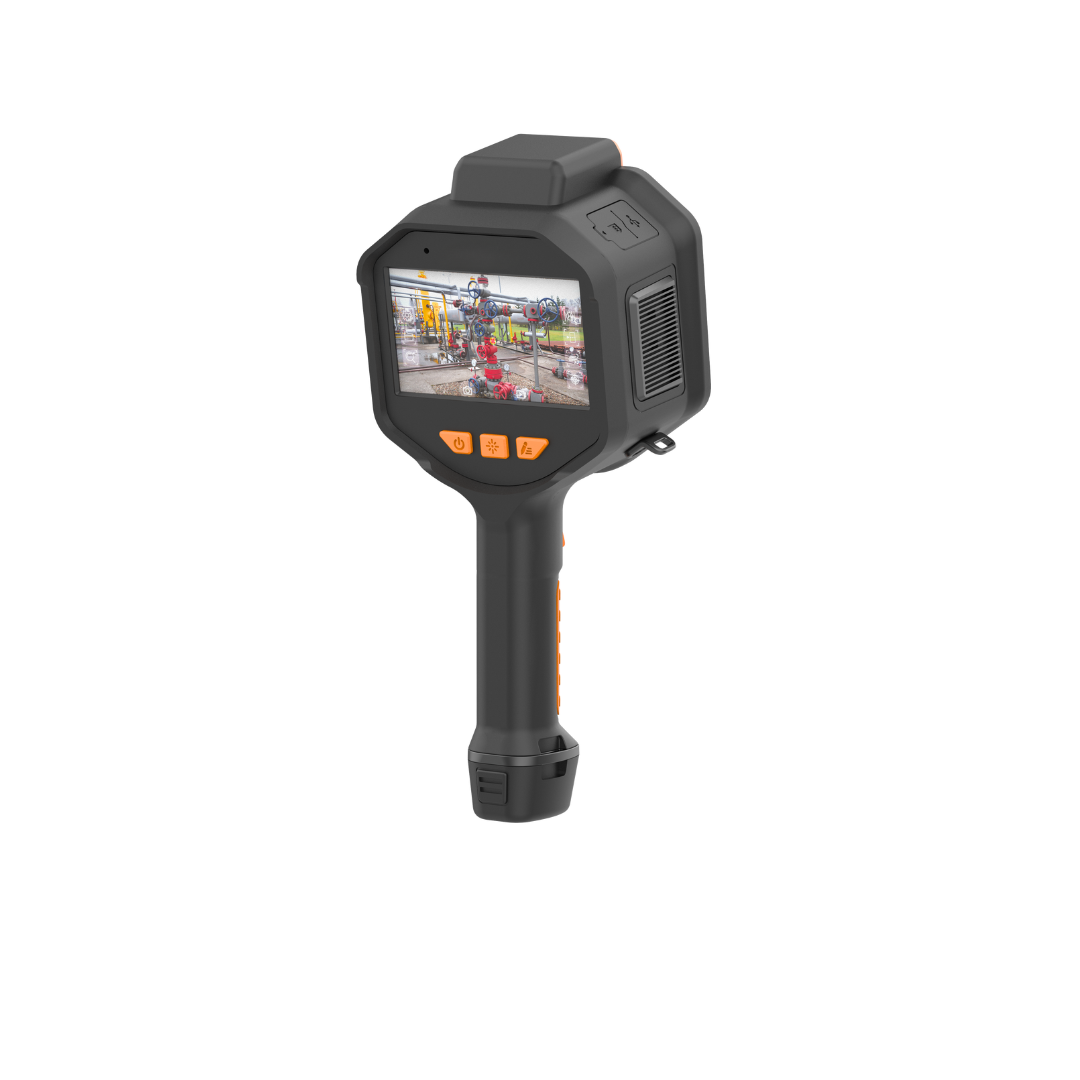

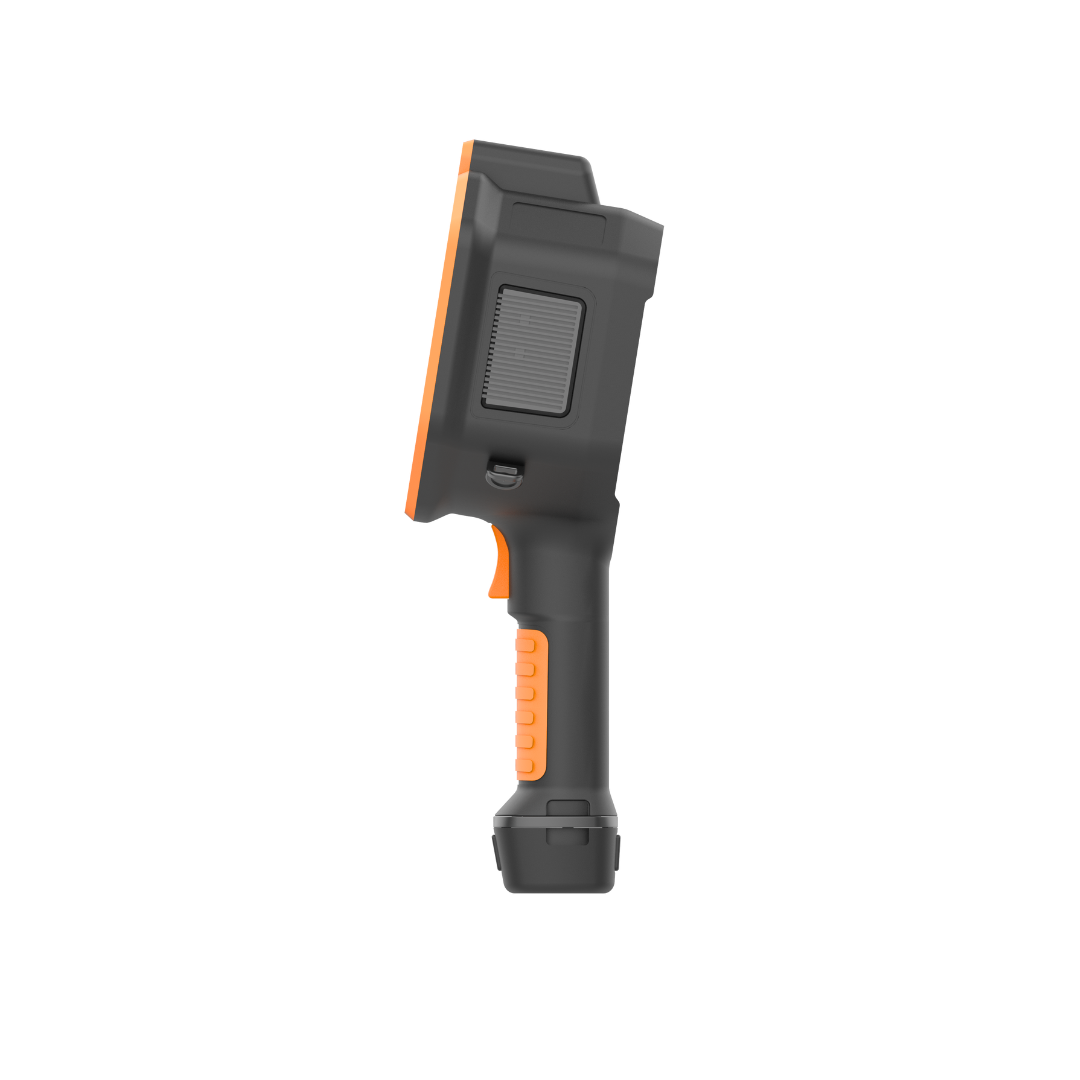

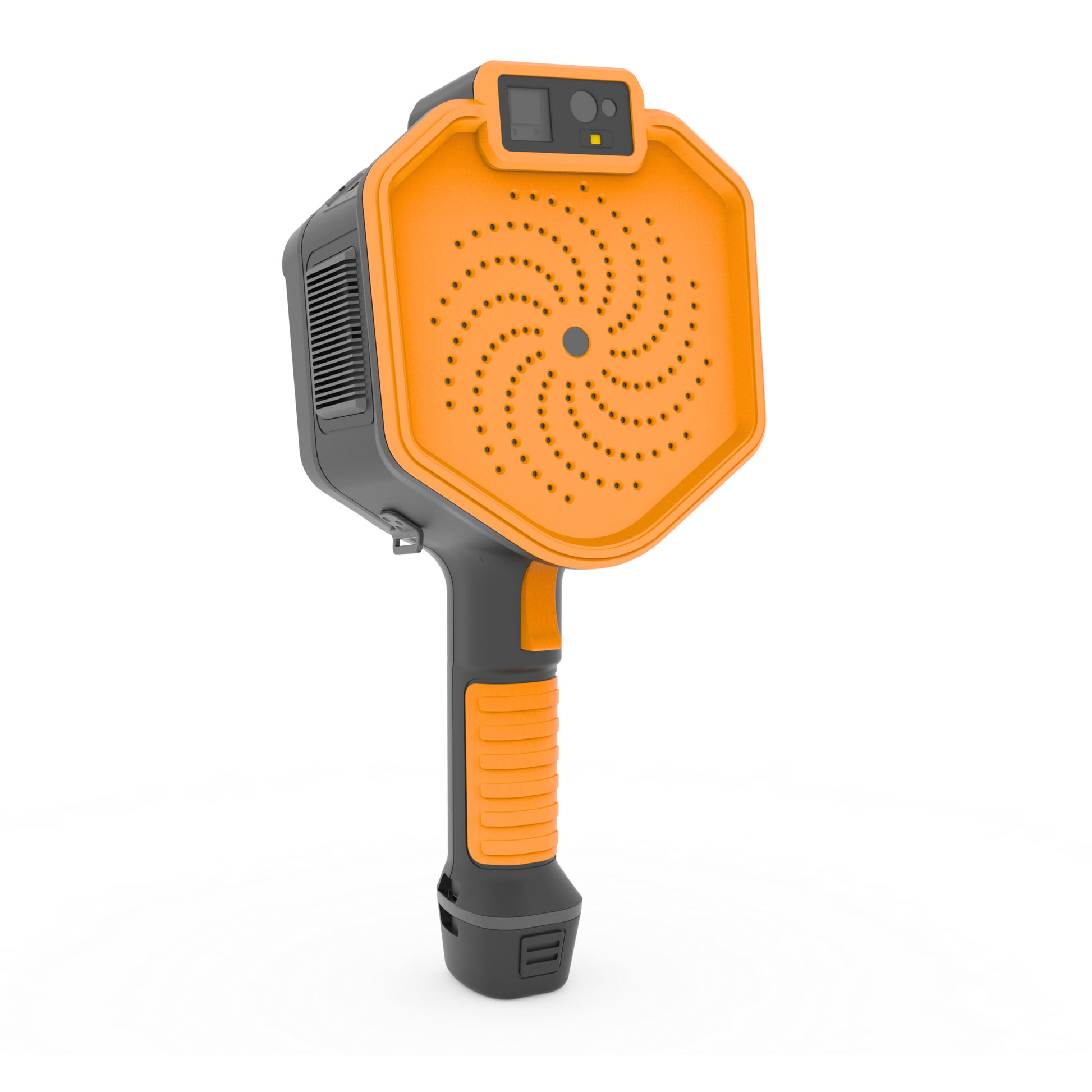

HA3LX Handheld Acoustic & Methane Laser Camera Ex

Smarter Gas Leak Detection. Real-Time Fault Diagnosis. Industrial-Grade Safety.

The Hertzinno HA3LX is a high-performance handheld acoustic and methane laser camera designed for industrial professionals who demand precision, safety, and speed. Whether you're inspecting pipelines, diagnosing mechanical faults, or detecting partial discharges in electrical systems, this powerful tool lets you see sound, quantify gas, and analyze results instantly.

Key Features

🎤 144 Low-Noise MEMS Microphones
Accurately detect and visualize multiple sound sources.

🌬️ Methane Laser Sensor (TDLAS)
Non-contact, real-time methane detection for fast, safe gas inspections.

🎯 Real-Time Sound Source Localization
Identify and map leak points or faults instantly.

🔧 Mechanical Fault Diagnosis
Detect bearing wear, lubrication issues, and more.

⚡ Partial Discharge Detection
Spot early signs of insulation failure and electrical arcing.

📶 Wide Frequency Bandwidth (2kHz–130kHz)
Capture a broad range of acoustic events with accuracy.

🔭 Laser Rangefinder
Pinpoint your target’s distance

🎧 Bluetooth Headphone Monitoring
Hear live audio signals remotely, safely, and clearly.

📊 On-Screen Frequency Spectrum Display
Visualize and analyze frequency profiles in real-time.

🖱️ One-Click Analysis & Reporting
Generate, review, and export inspection reports in seconds.

📝 Smart File Notes
Add voice, text, photos, and tags to every file for better documentation.

🔌 Multiple Export Options
Share via Wi-Fi, Bluetooth, or USB.

💥 Explosion-Proof Design
Built for hazardous and high-risk industrial environments.

     Tech Specs

Detection Range: 0.3m – 200m

Frequency Bandwidth: 2kHz – 130kHz

Audio Monitoring: Bluetooth-compatible headphones

Methane Detection: Tunable Diode Laser Absorption Spectroscopy (TDLAS) Detecting Distance 30m (80% reflectance, gas concentration 3000 ppm*m）

Data Export: Wi-Fi, Bluetooth, USB

File Management: Photo notes, voice tags, file labeling

Report Format: On-device generation, ready-to-export PDF

     Perfect For

Oil & Gas Facilities

Pipeline & Valve Monitoring

Manufacturing Plants

Chemical Processing

Electrical Utilities

Environmental Inspection Teams

Manufacturers Datasheet: Download
